Biological Rope
Media

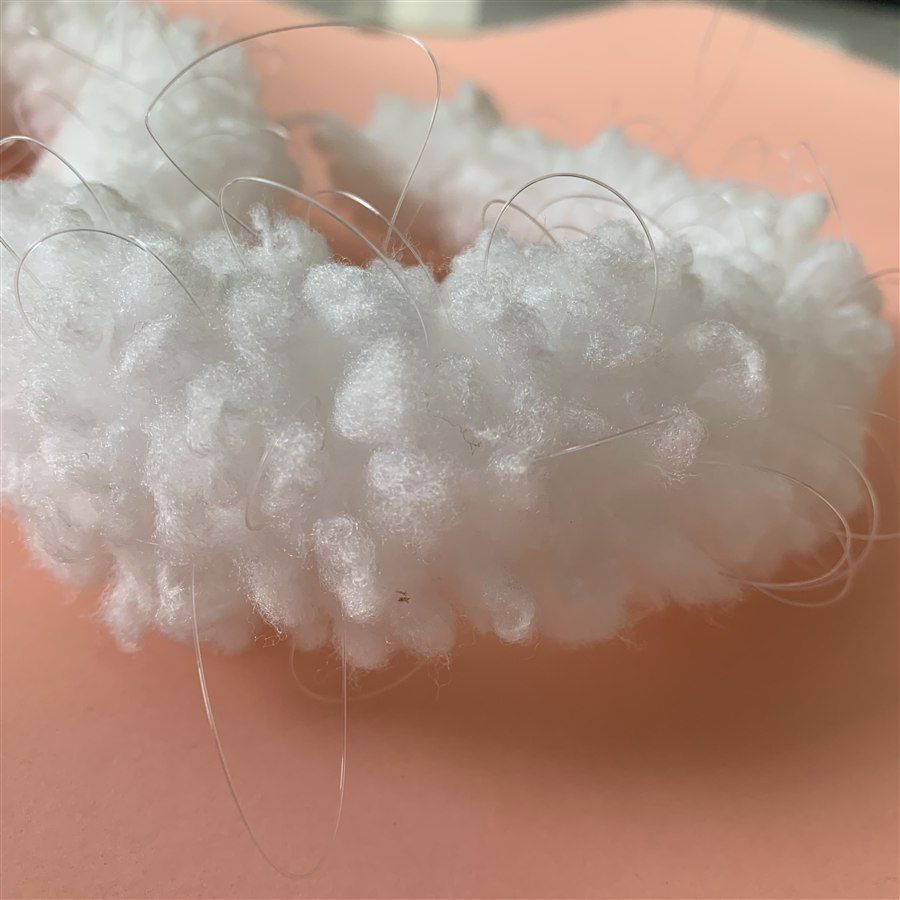

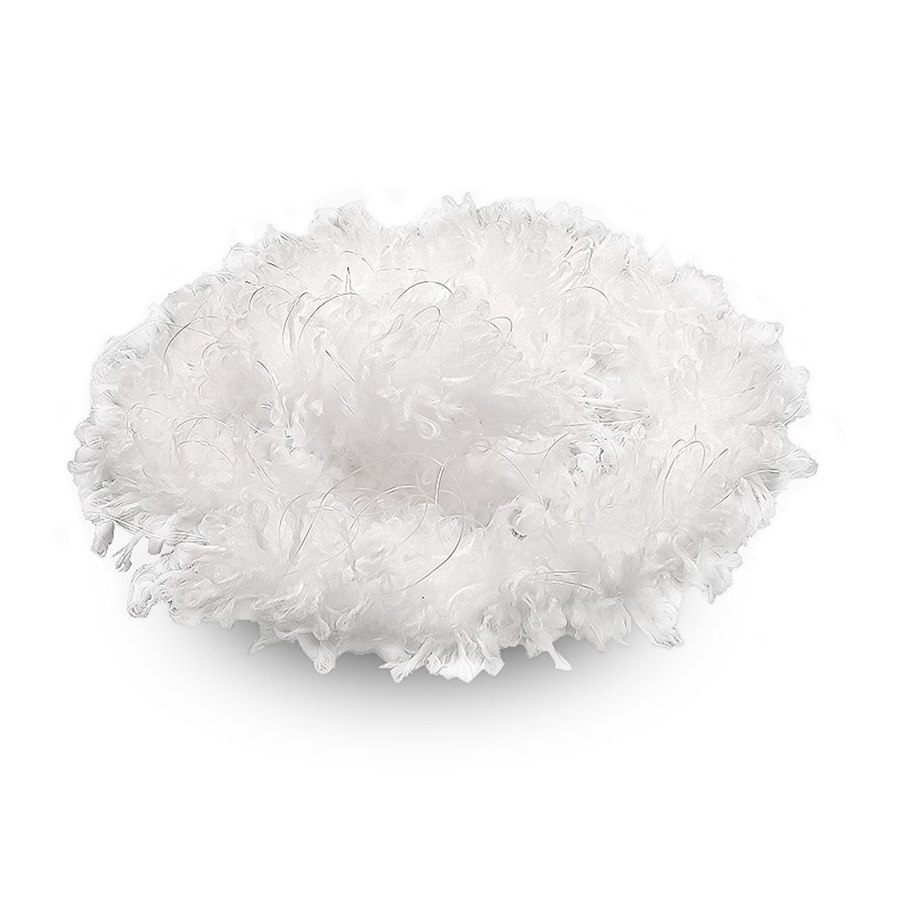

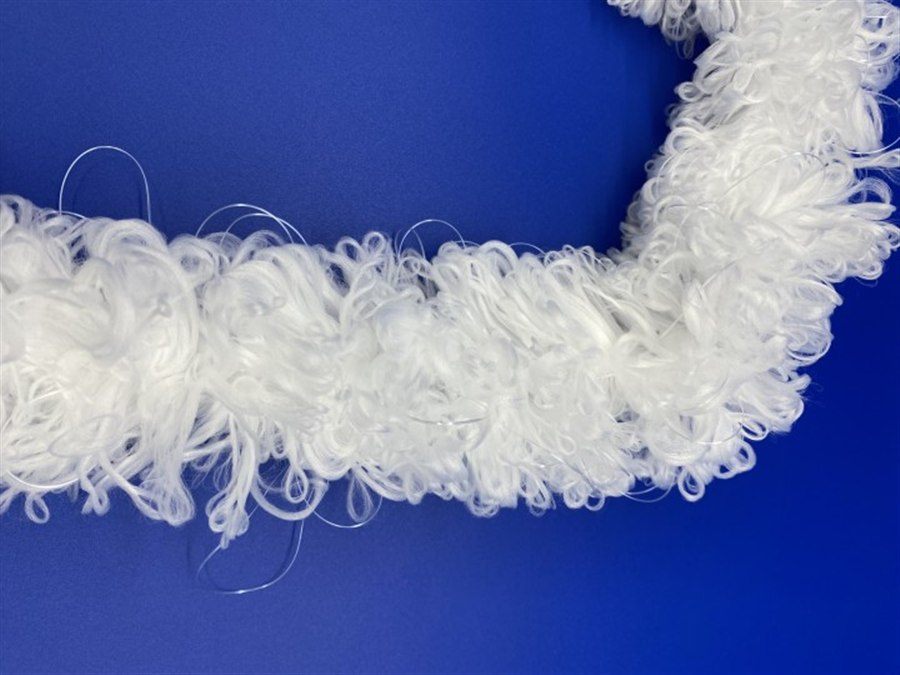

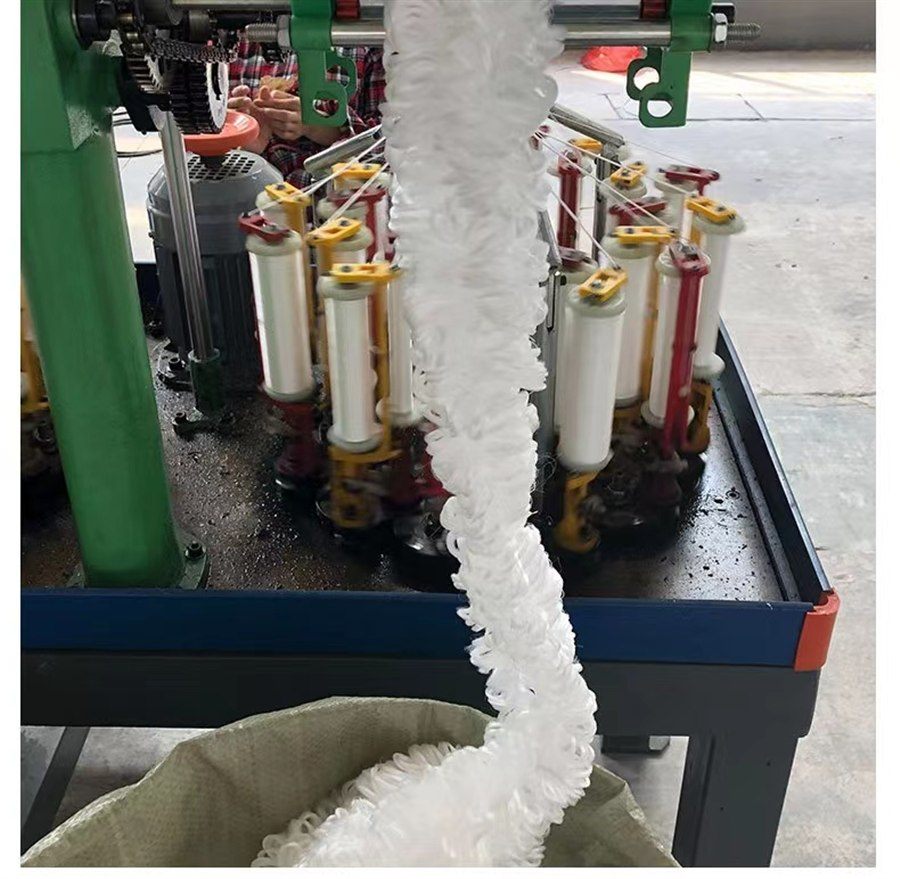

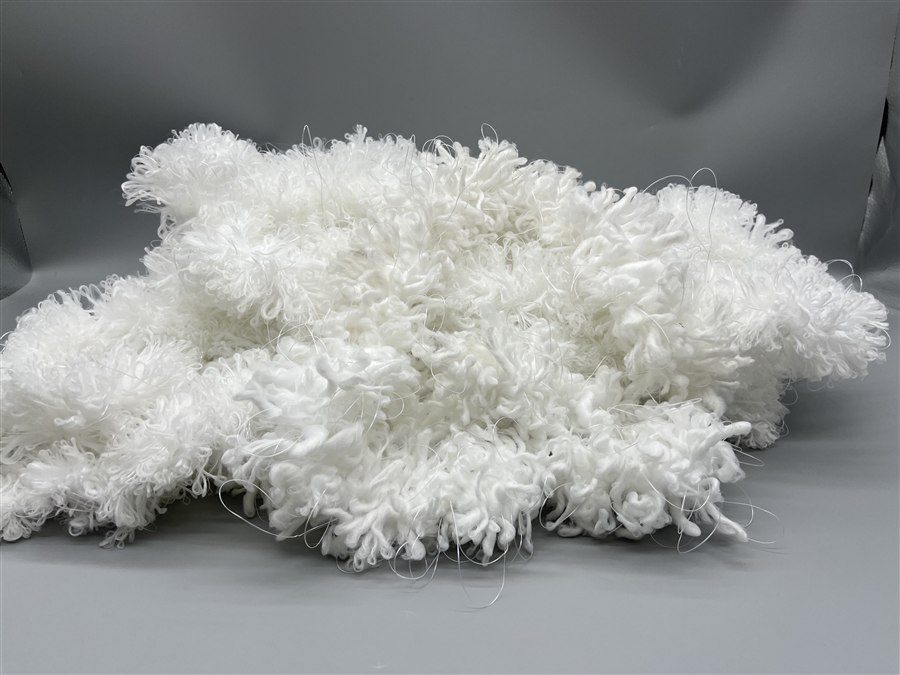

Biological rope (braided belt) media — a new-generation eco-friendly bio-active carrier made from lightweight, high-strength, corrosion-resistant chemical-fibre net yarn. Its spiral tube structure and millions of surface loops give a large surface area, fast biofilm formation and easy shedding, for aerobic, anaerobic and anoxic service.

Request a Quote Technical Details

60 / 80 mmBelt width

1000–18000m²/m³

90–99%Porosity

8–30Loop mm

100N/strap

Type

Braided belt

Belt width

60 / 80 mm

Surface area

up to 18000 m²/m³

Porosity

90 – 99%

Tensile strength

100 N/strap

Why this media

High surface,
fast biofilm

The looped, grass-like structure holds a large biofilm and cuts bubbles, while staying easy to install and clean.

Large surface, fast film

High surface area and porosity give fast biofilm start-up and easy, continuous shedding/regeneration.

Cuts bubbles

Effectively cuts air bubbles, raising oxygen transfer rate and utilization.

Water-grass form

Mimics natural water grass, resists sludge accumulation, needs no support frame, and has a long, impact-resistant service life with stable effluent.

Specifications

Technical parameters

Item	Value
Material	Lightweight, high-strength, corrosion-resistant chemical-fibre net yarn

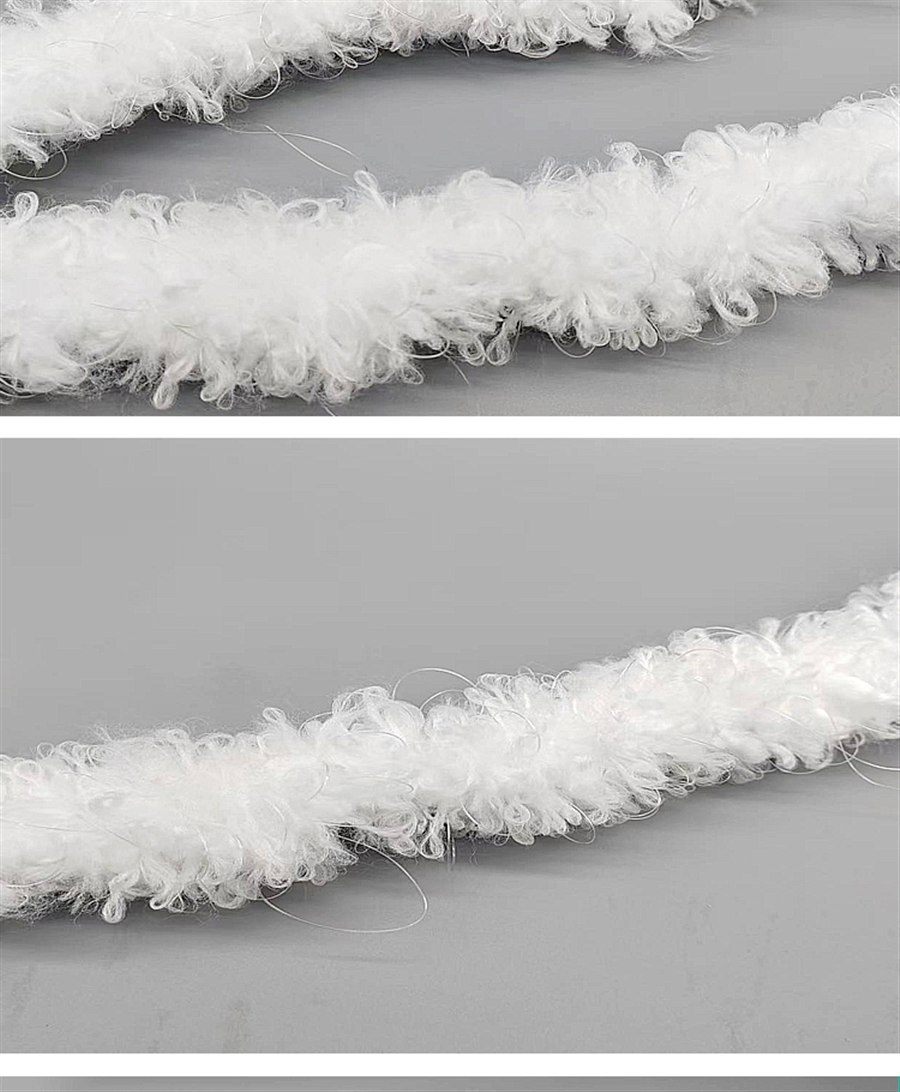

Structure	Spiral tube shape, elastic, with looped surface; belt form for easy installation
Loop length	8 – 30 mm
Belt width	60 mm / 80 mm
Specific surface area	1000 – 18000 m²/m³
Porosity	90 – 99%
Tensile strength	100 N per strap
Water temperature	20 – 35 ℃ (optimum 25 ℃)
Retention time	2 – 4 h
Dissolved oxygen	2 mg/L
Service	Aerobic / anaerobic / anoxic (per specification)
MOQ / price	On request — confirm specification, quantity & destination

Applications

Where it fits

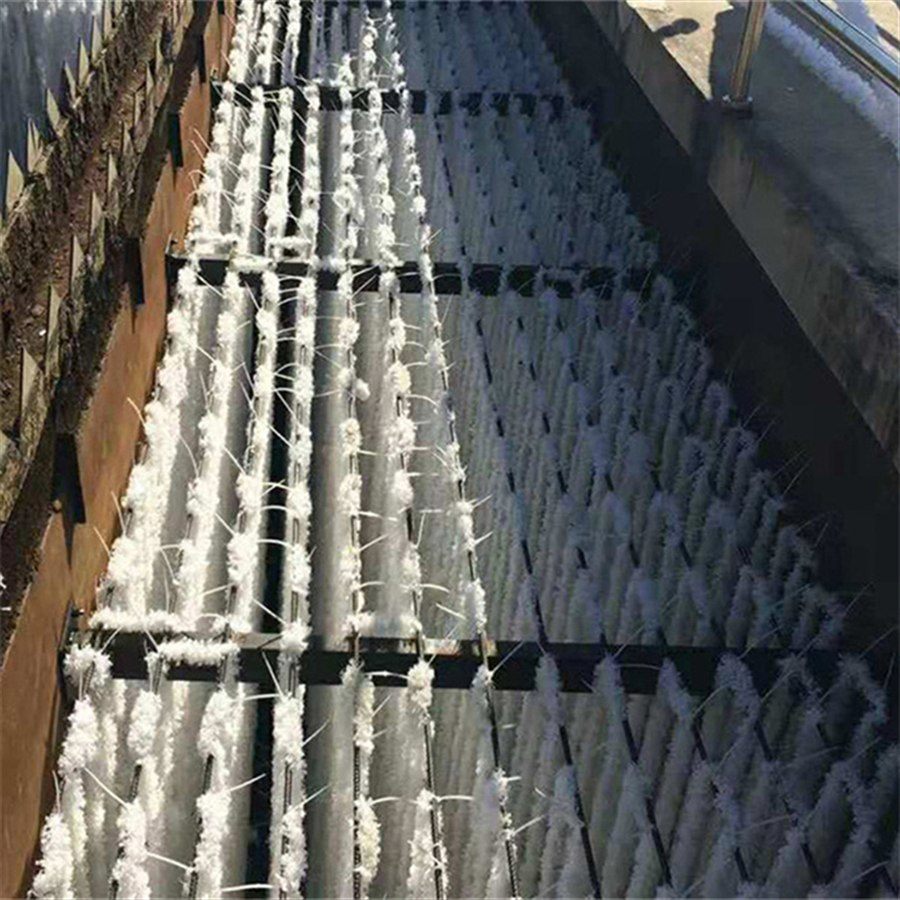

Municipal & domestic sewageIndustrial wastewater (wool, printing & dyeing, leather, paper, pharmaceutical, food)Biological contact oxidation tanksRiver / pond / lake purificationWater-grass-style in-situ media
