Hacketten
Packing

Hacketten packing (Tri-Pack ball) is an open-frame plastic random packing for scrubbers, absorption columns and biological contact oxidation. An equatorial ring, ladder-shaped vertical ribs and internal struts form a body with no continuous flat surface, so the gas path stays open, the liquid spreads evenly and the bed resists plugging and nesting.

Request a Quote Technical Details

Φ25 mm – Φ90 mmNominal size

PPMaterial

90 – 95%Void space

85 – 38 ft²/ft³Surface area

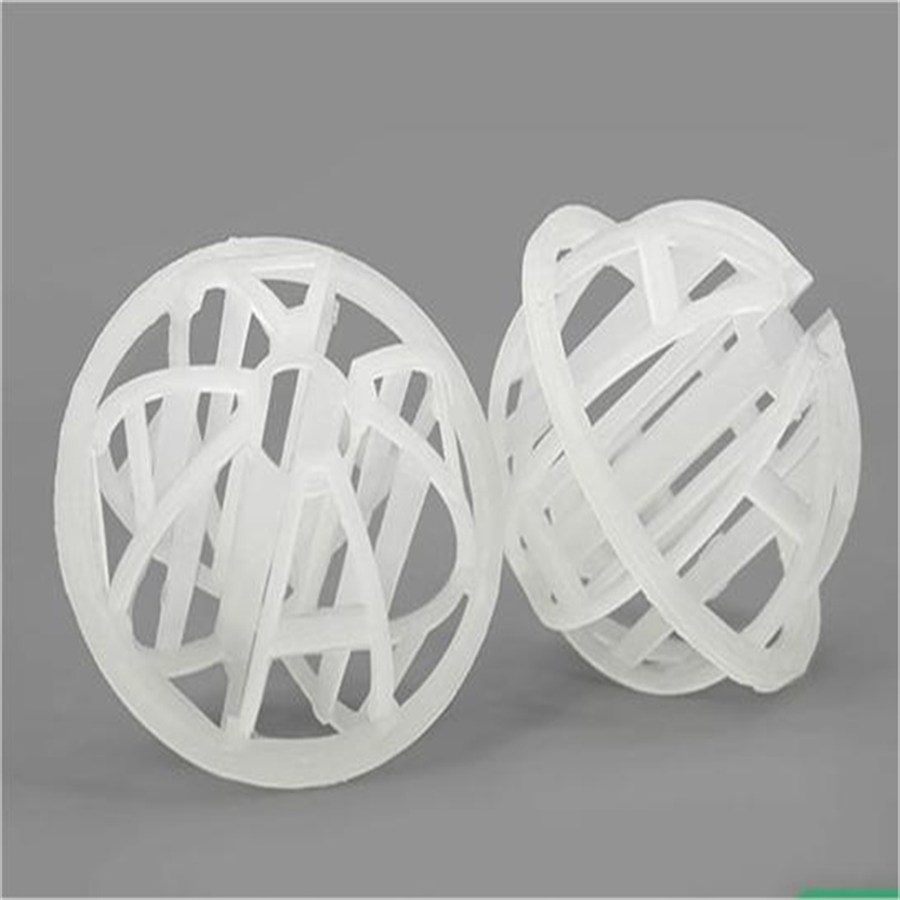

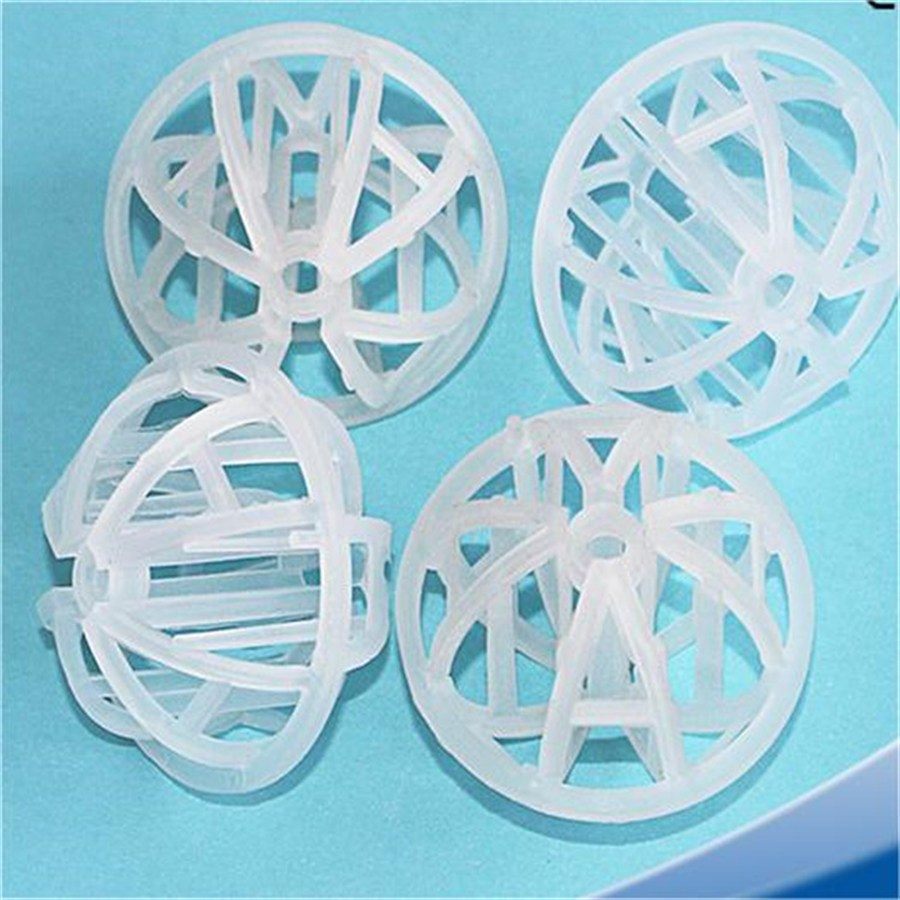

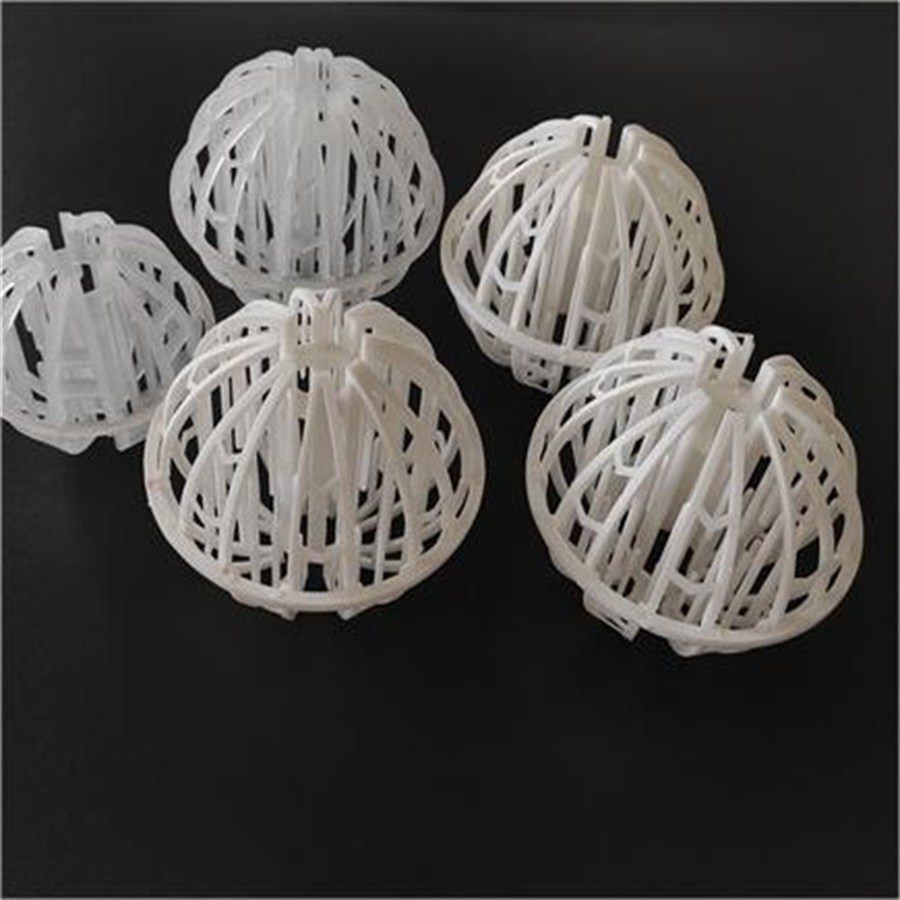

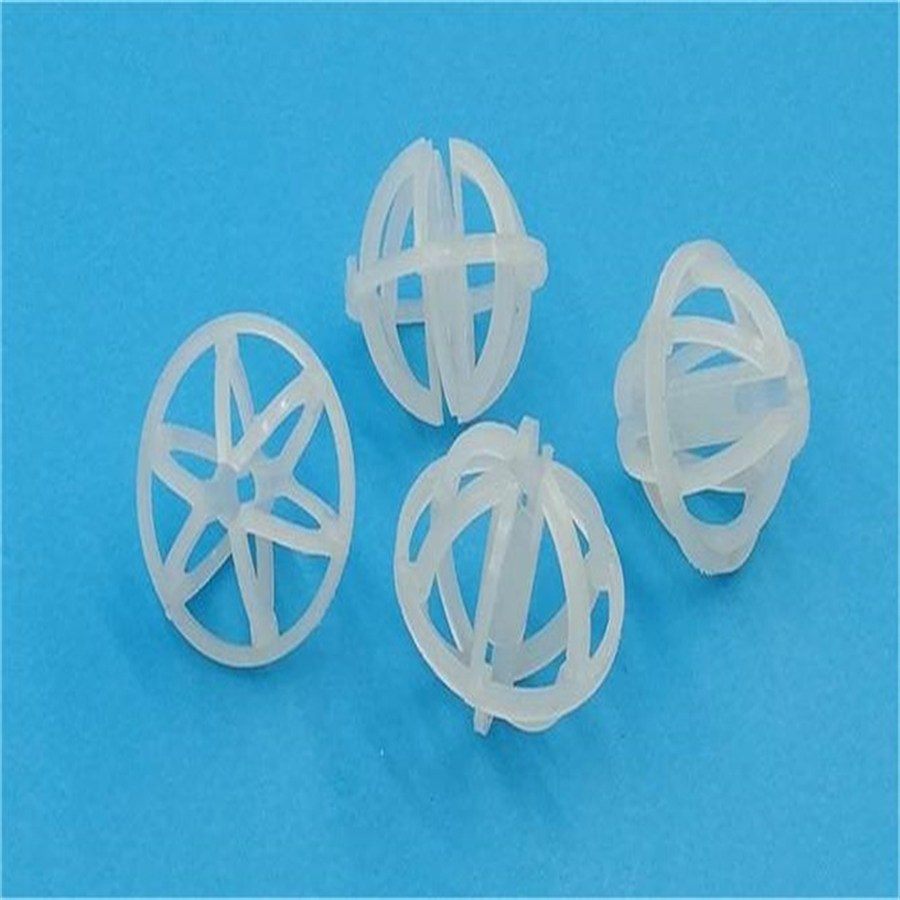

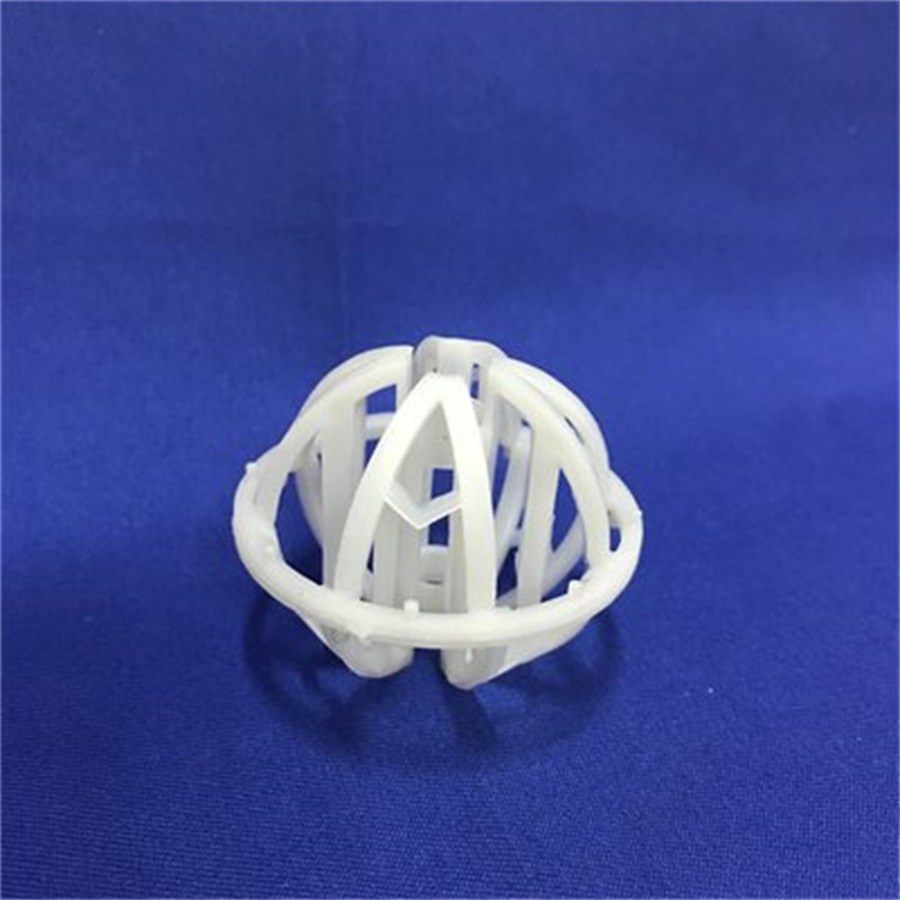

White Hacketten packing (Tri-Pack ball) with an open ribbed frame

Type

Random tower packing

Nominal size

Φ25 mm – Φ90 mm

Void space

90 – 95%

Material

PP; RPP, PE, PVC on request

Service temperature

≤100 ℃ (PP)

Price

On request

Why this media

Open frame,
even contact

The geometry does the work: ribs, struts and drip rods break the liquid into a film and keep the gas path short, while the open frame leaves no dead corners for solids to collect.

Resists plugging & nesting

There are no continuous flat surfaces or minute openings to harbour particulate, so the packing resists plugging and nesting, and there are no corners where liquid can puddle.

Low pressure drop

A high void space of 90 – 95% means a large open area relative to surface, which keeps pressure drop, fan power and flooding risk low across the packed bed.

Reusable, corrosion resistant

Injection-moulded polypropylene resists acid and alkaline media, keeps bed weight low, and the packing can be unloaded, cleaned and re-loaded for a second duty.

Specifications

Technical parameters

Nominal size	Surface area / ft²/ft³	Packing factor / ft⁻¹	Void space / %	Bulk density / lb/ft³	Bulk density / kg/m³
Φ25 mm (1 in)	85	28	90	6.2	≈99
Φ32 mm (1-1/4 in)	70	25	92	5.6	≈90
Φ50 mm (2 in)	48	16	93	4.2	≈67
Φ90 mm (3-1/2 in)	38	12	95	3.3	≈53

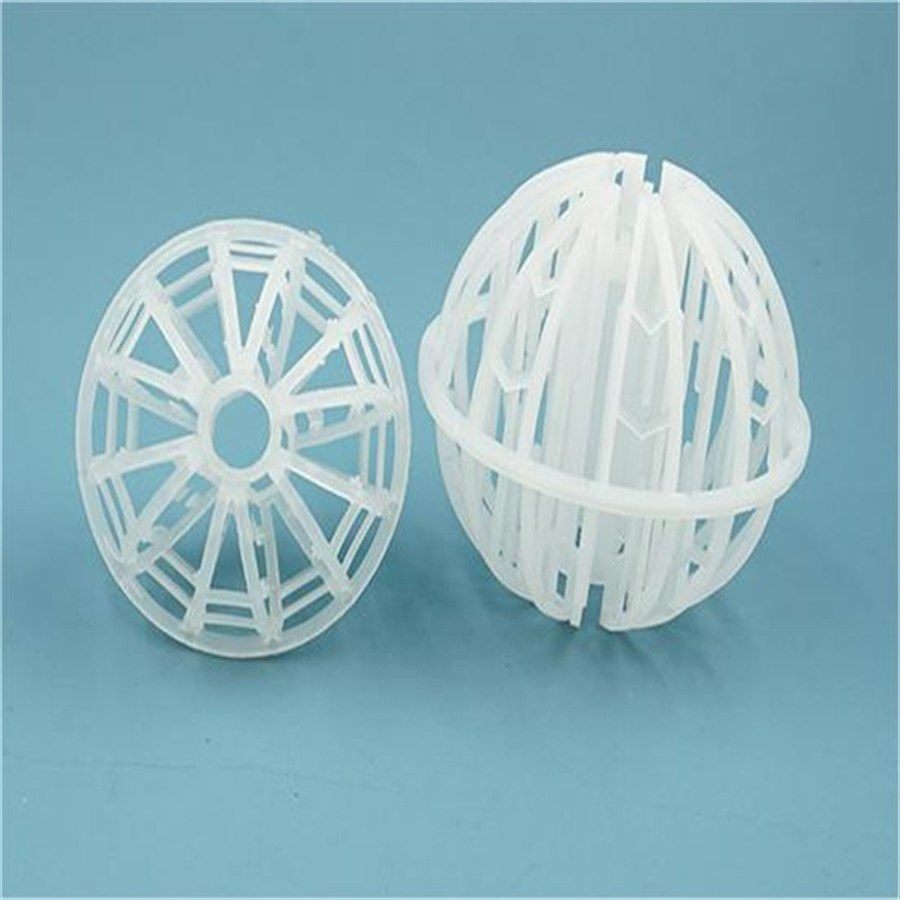

Structure	Injection-moulded open frame — equatorial ring, ladder-shaped vertical ribs and internal struts forming an open lattice

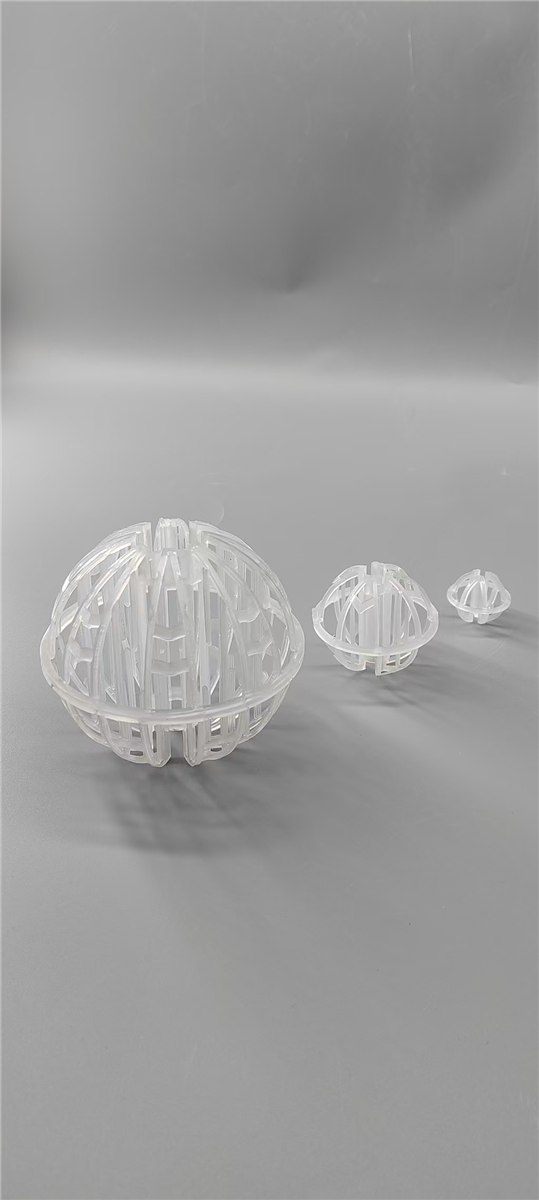

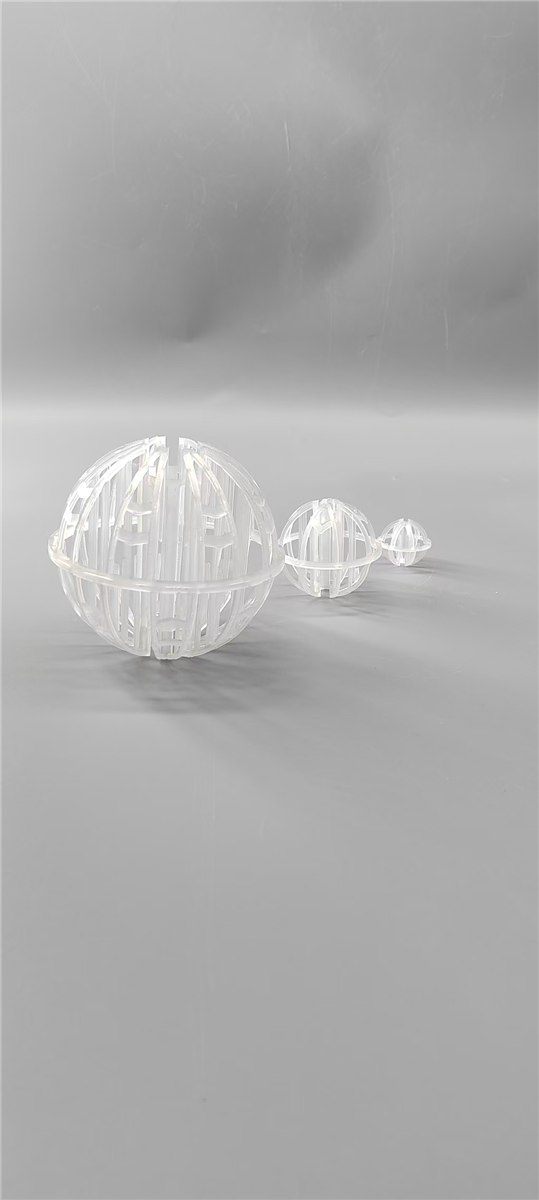

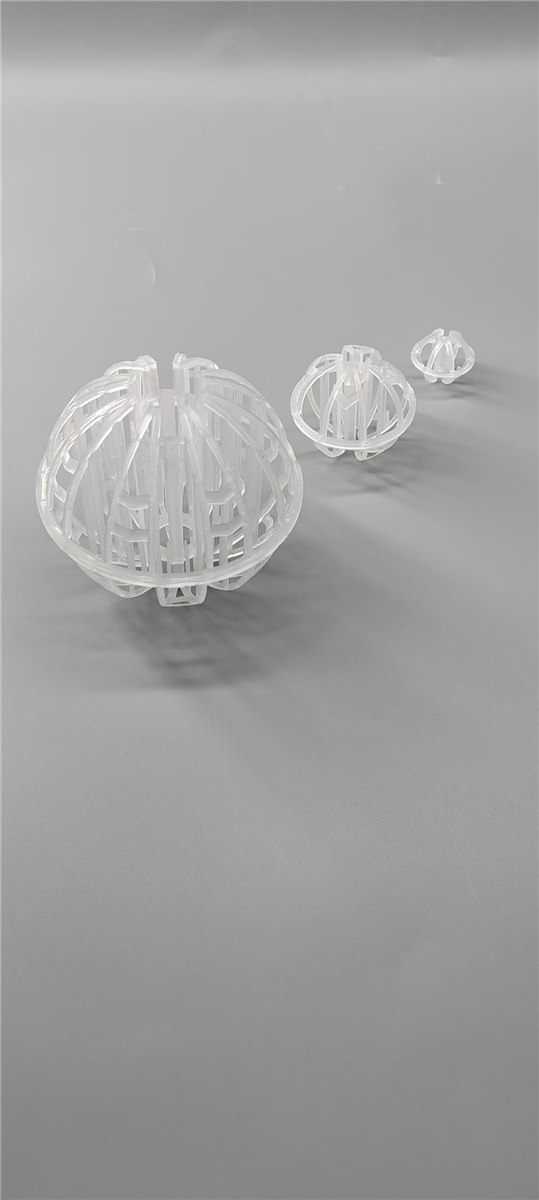

Nominal sizes	Φ25 mm (1 in) / Φ32 mm (1-1/4 in) / Φ50 mm (2 in) / Φ90 mm (3-1/2 in); other diameters on request
Material	Polypropylene (PP); reinforced PP (RPP), polyethylene (PE), PVC, CPVC and PVDF on request
Density	PP 0.89 – 0.91 g/cm³ · RPP 0.93 – 0.94 g/cm³ · PE 0.94 – 0.96 g/cm³ · PVC 1.32 – 1.44 g/cm³
Service temperature	PP ≤100 ℃ · RPP ≤120 ℃ · PE ≤90 ℃ · PVC ≤60 ℃
Packing quantity	On request — pieces per m³ depend on nominal size and wall thickness
Application	Gas scrubbing and absorption towers; degassing and liquid–liquid extraction; biological contact oxidation carriers
MOQ / price	On request — confirm size, material, quantity & destination

Surface area, packing factor, void space and bulk density above are the figures published by industry references for plastic Tri-Pack (Hacketten) packing in the four standard moulded sizes; bulk density is converted from lb/ft³ to kg/m³ at 16.018 kg/m³ and rounded. Void space in particular varies between suppliers and moulds, and packing count differs widely between sources, so we confirm the parameters we can guarantee for your batch against the order. Send us the duty and we will state them.
