SpecificationsTechnical parameters
| Parameter | Specification |
|---|
| Material | Stainless steel — grade confirmed against the water chemistry |

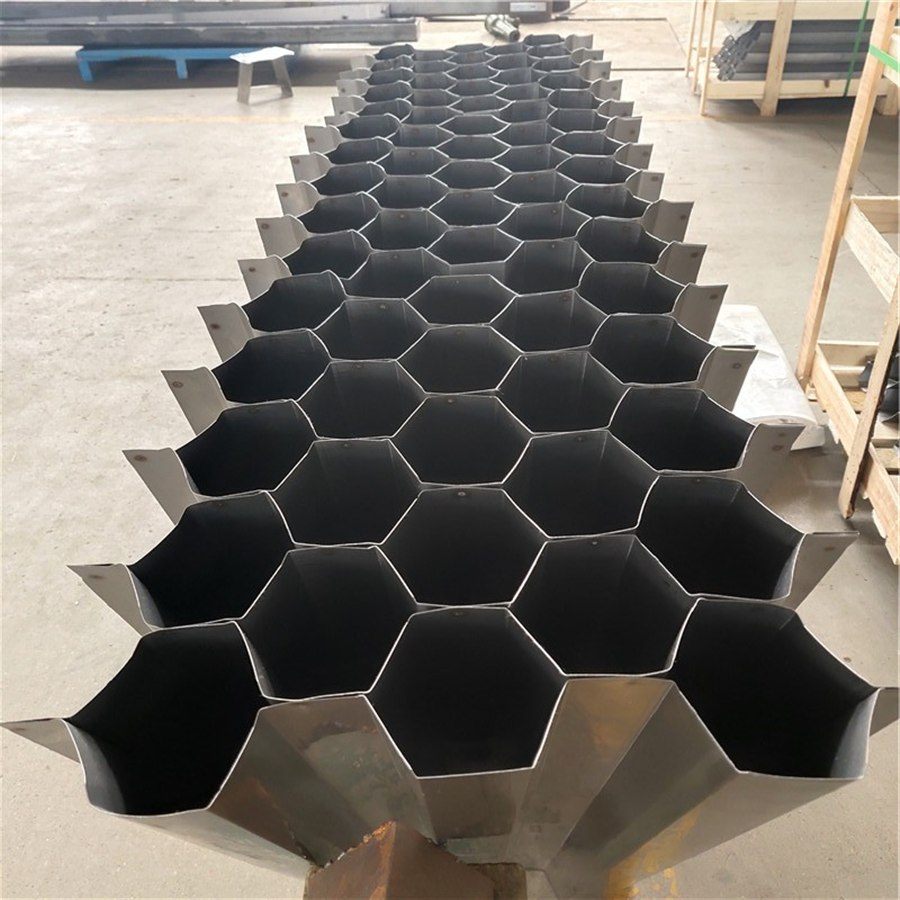

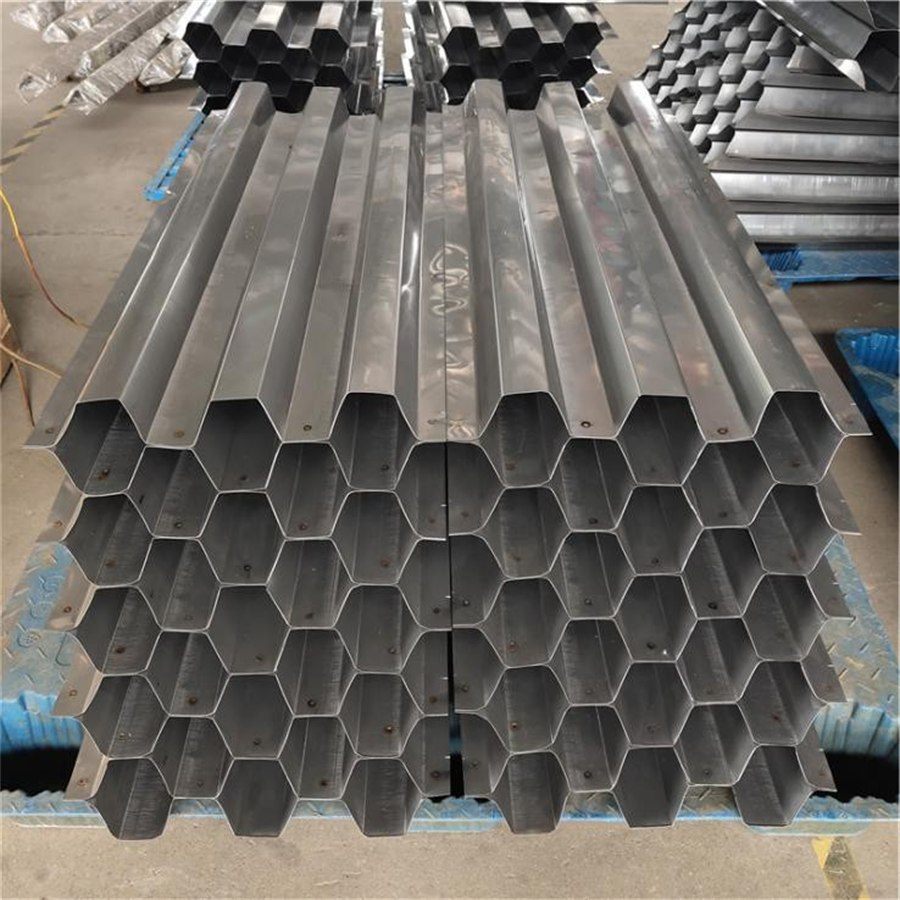

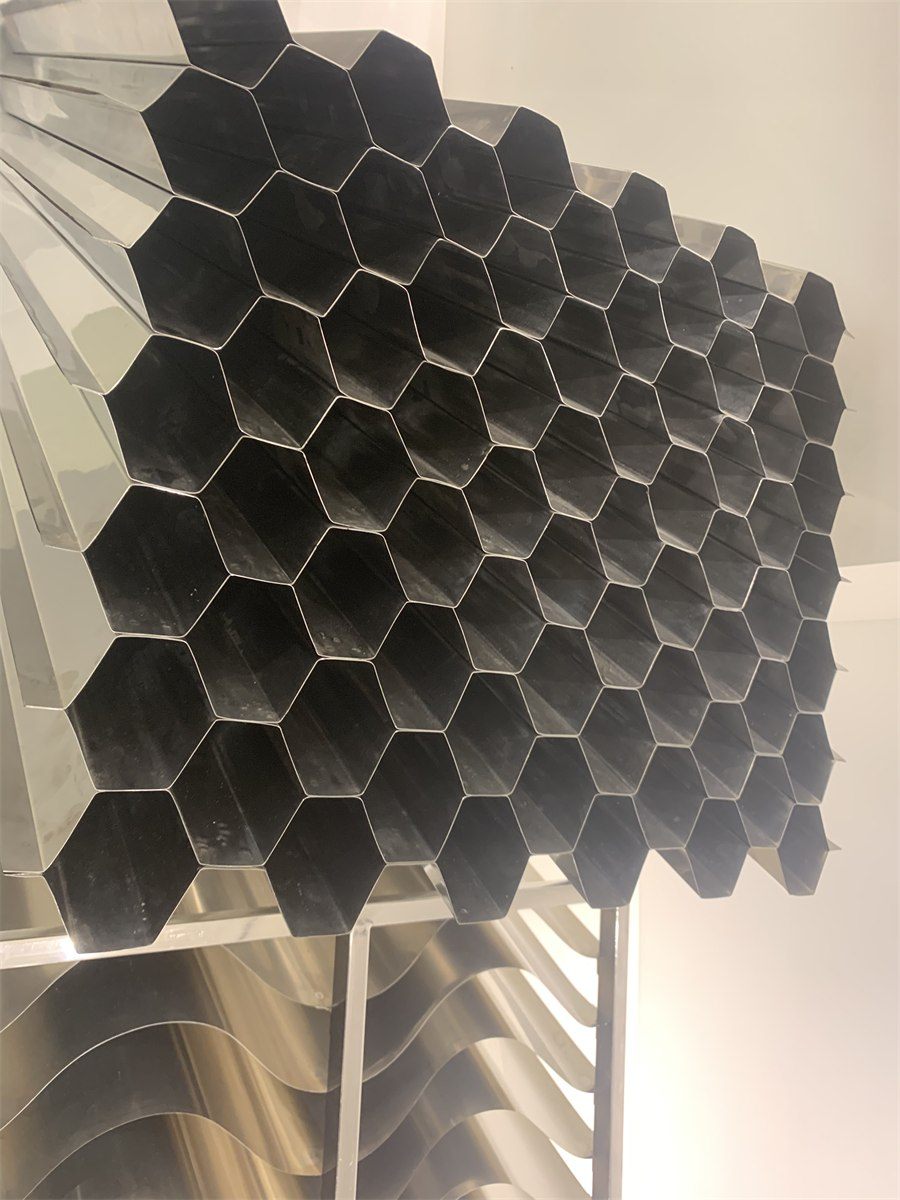

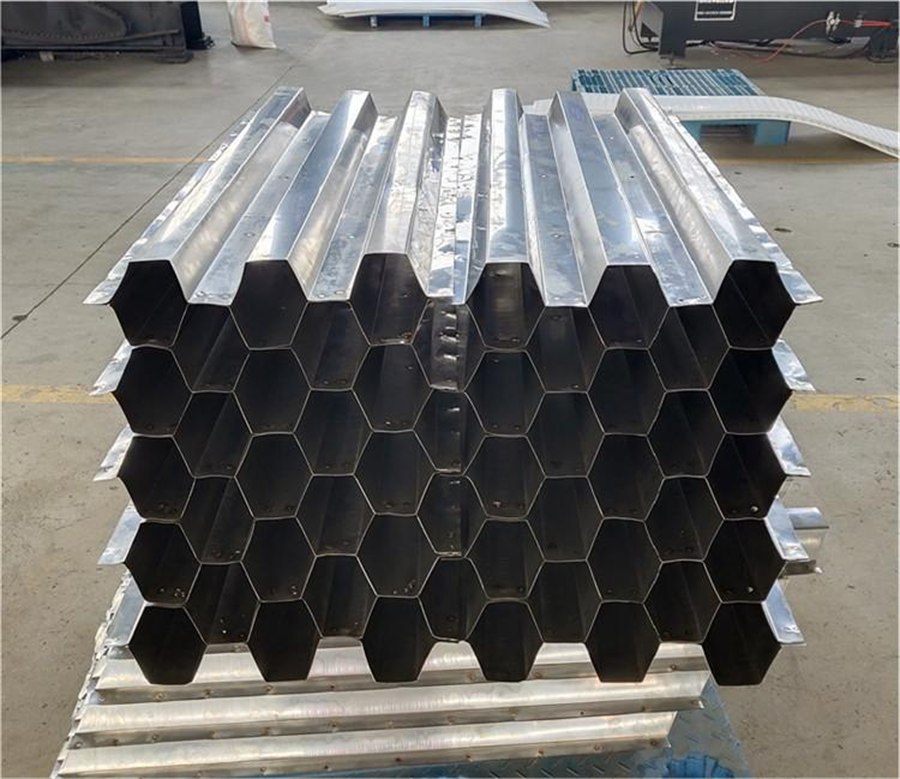

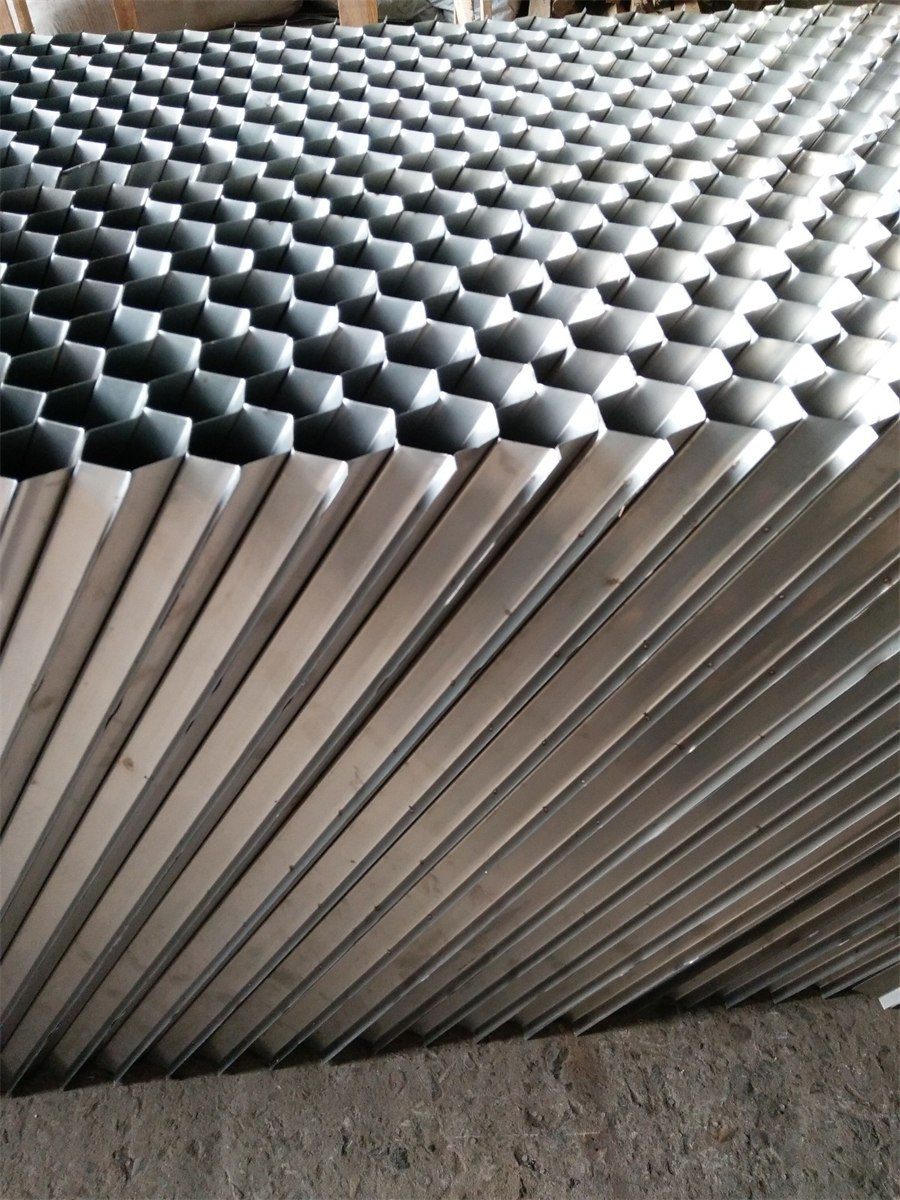

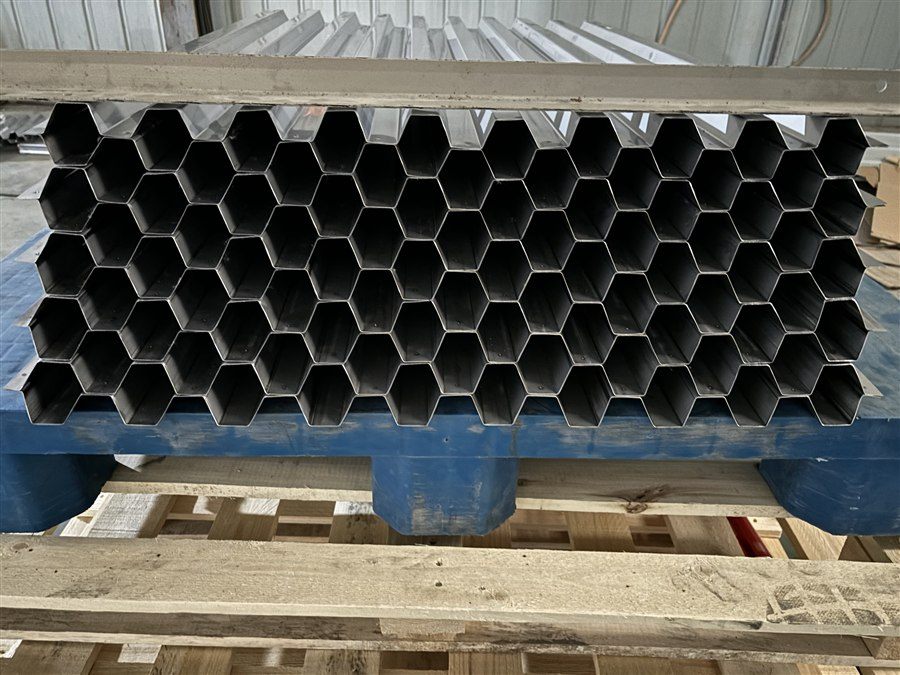

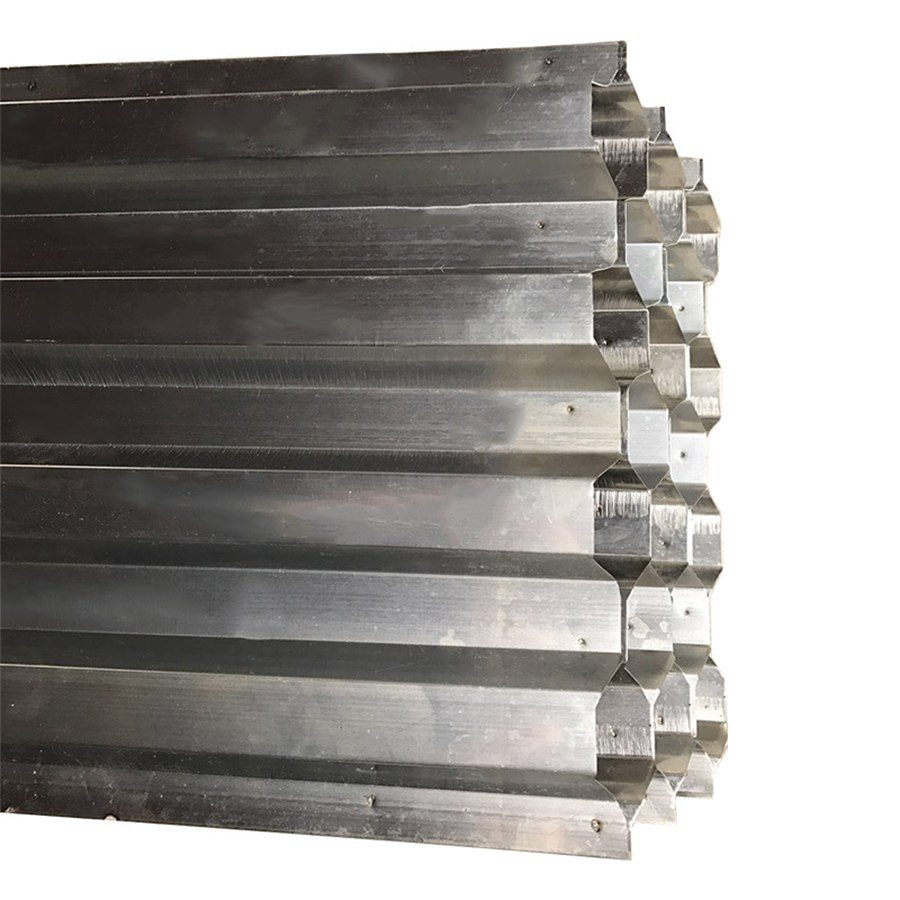

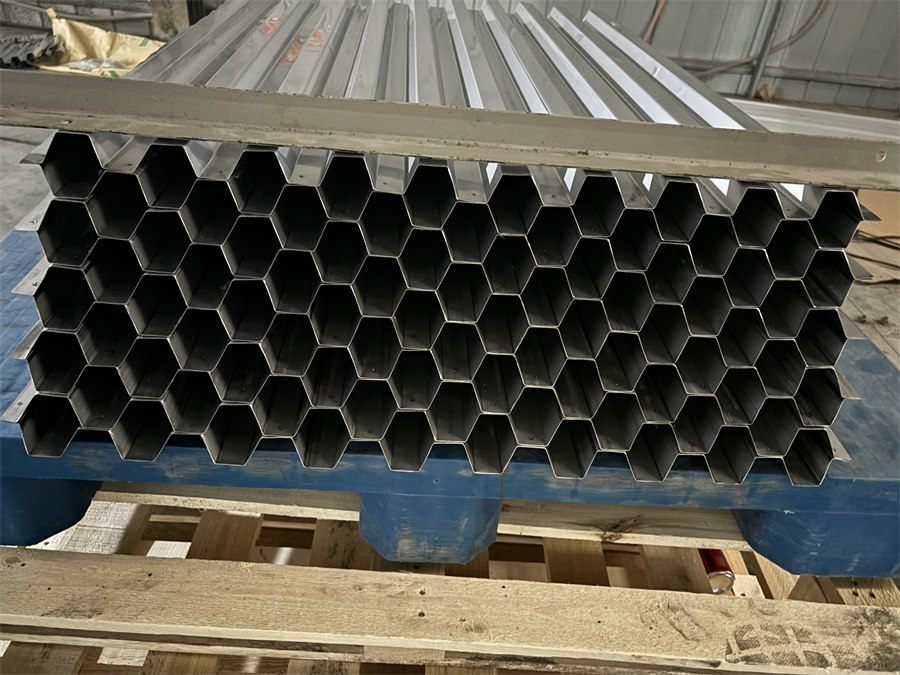

| Structure | Hexagonal honeycomb block assembled from straight hexagonal tubes |
| Cell (pore) size | Φ25 / 35 / 50 / 60 / 80 / 90 mm (other sizes on request) |
| Panel size | 1000 × 500 × 1000 mm (custom dimensions on request) |
| Installation angle | 60° |
| Sheet thickness | 0.5 – 0.8 mm |
| Surface area | 62 – 236 m²/m³ |
| Porosity | 93 – 97% |
| Bulk density | On request — depends on the grade used |
| Service life | On request — set by water chemistry and cleaning regime |
| Design velocity V₀ | 2.5 – 3.0 mm/s (1 m tube length) |
| Effective hydraulic load | 3 – 5 t/(m²·h) (1 m tube length) |
| Capacity vs other basins | 3 – 5× a horizontal-flow basin; 2 – 3× an accelerated or pulse clarifier |
| Lamella board thickness | 0.4 / 0.5 / 0.8 mm (Φ35 / 50 / 80) |
| Stack height | 4 – 5 m |
| COD removal | 85 – 90% |
| Sediment content at intake | 50 – 100 kg/m² with tubes 2.0 – 3.0 m long |
| Application | Sedimentation and desanding; inlet desanding, water settling, oil separation, tailings thickening |
| SKU | NWS-HXT series |
| MOQ / price | On request — confirm cell size, panel dimensions, quantity & destination |
Geometry, sheet thickness, surface area, porosity and all hydraulic values are identical to the standard PP / FRP tube settler; only the material differs. Stainless steel grade, density and service life are confirmed per project and quoted on request.
