Deep Bed Filtration

Fiber Bundle
Filter Media

Fiber bundle filter media is a micron-grade filter material: fine fibre strands are gathered into a bundle and hung on a support frame inside the filter. Under downflow the bed compresses, so its pore size closes along the flow path and suspended solids are held through the full bed depth. Under air–water backwash the bundles open again and release what they captured.

Request a Quote Technical Details

20–50 µmFibre diameter

100–150 mmBundle diameter

3500 m²/m³Surface area

98%Porosity

Fiber bundle filter media — white fibre bundles

Media form

Suspended fibre bundle

Fibre diameter

20–50 µm

Bundle diameter

100–150 mm

Bundle length

1.00–2.00 m

Surface area

up to 3500 m²/m³

Porosity

98%

Filtration rate

35–85 m/h

Price

On request

Why this media

Micron-grade filtration,
a bed that reopens

The media replaces millimetre-scale filter grains with fibre strands tens of micrometres across, and keeps them in an ordered bed that is compressed to filter and loosened to clean.

Micron-grade interception

Because the strands are 20–50 µm across, the filter surface area reaches up to 3500 m²/m³ — far beyond what a granular bed of the same volume can offer — so suspended solids that a millimetre-scale filter grain lets through are intercepted instead.

A bed that grades itself

Under downflow the density-adjusting device drives the fibre bed downward, so packing density rises and the pore size falls along the flow path. The result is a graded, variable-pore deep bed without the artificial media grading that granular filters need, holding up to 8 kg/m³ of solids.

Fast, complete backwash

On air–water backwash the bed lifts and the bundles open up, so the solids held through the bed depth are washed out in a short cycle. The bundles stay hung in order, do not knot or wash out, and the run can be automated.

Specifications

Technical parameters

Parameter	Value
Media form	Bundle of fibre strands, hung on a support frame
Filament material	Polypropylene (PP) staple fibre · polyester (PES) staple fibre
Modified (grafted) types	Available — confirm the duty when enquiring
Fibre diameter	20–50 µm
Fibre filament length	15–25 mm
Bundle diameter	100–150 mm
Bundle length	1.00–2.00 m; longer lengths made to order
Bundle weight	200–400 g per bundle
Surface area	up to 3500 m²/m³
Porosity	98%
Packing density of the bed	20–40 kg/m³
Filtration rate	35–85 m/h
Solids retention	8 kg/m³
Typical duty — coarse filtration	Filtration rate around 35 m/h; inlet 120 mg/L → outlet SS ≤5 mg/L
Typical duty — fine filtration	Inlet 25 mg/L → outlet ≤2 mg/L
Backwash	Air–water combined washing; bundles stay in place and are not lost
Service life	On request — confirmed against the duty
Packing	On request
MOQ / price	On request — confirm filter model, bed volume & destination

Parameter basis

The figures above are the published reference values for fiber bundle filter media. Fibre grade, bundle dimensions, bed design, filtration rate and packing are confirmed against your filter model and water quality before quotation.

Applications

Where it fits

Drinking water & potable supplyIndustrial water — power, petrochemical, metallurgy, electronicsCirculating & side-stream filtrationCooling water & cooling system make-upWastewater reuse & recyclingTertiary treatment & polishing after biological stagesOil removal & oily wastewaterSwimming pool & aquaculture recirculationUpgrading existing rapid gravity sand filters

Product gallery

See the media up close

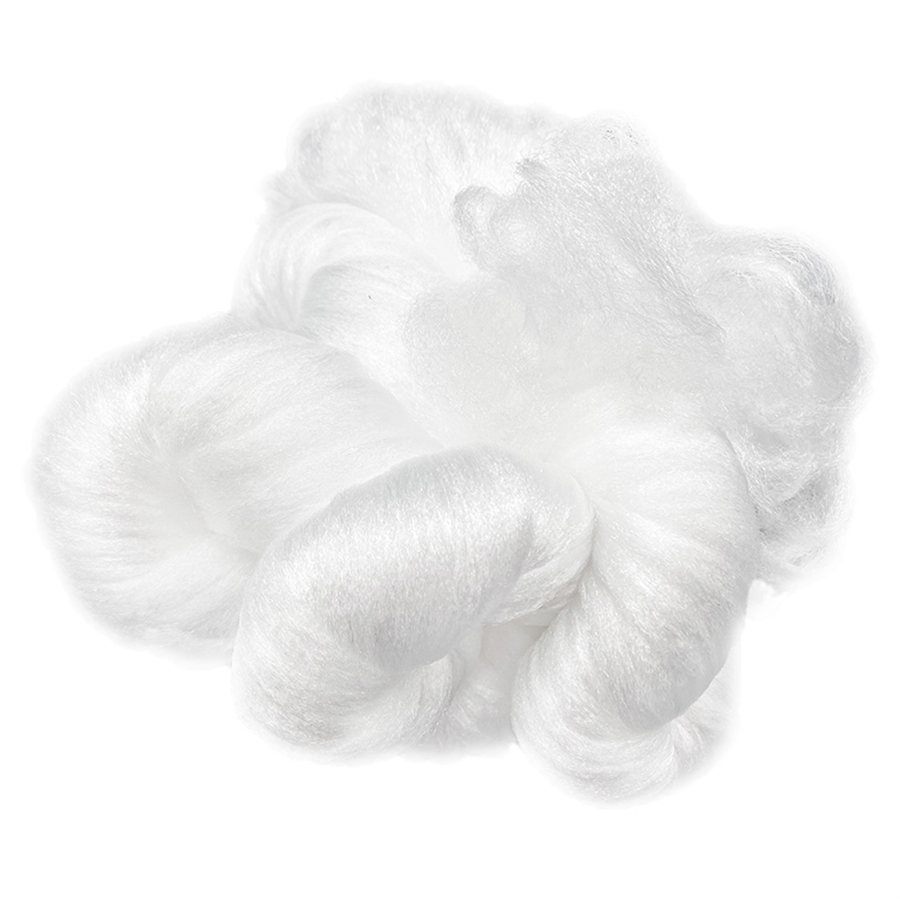

Fiber bundle filter media — white fibre bundle close up

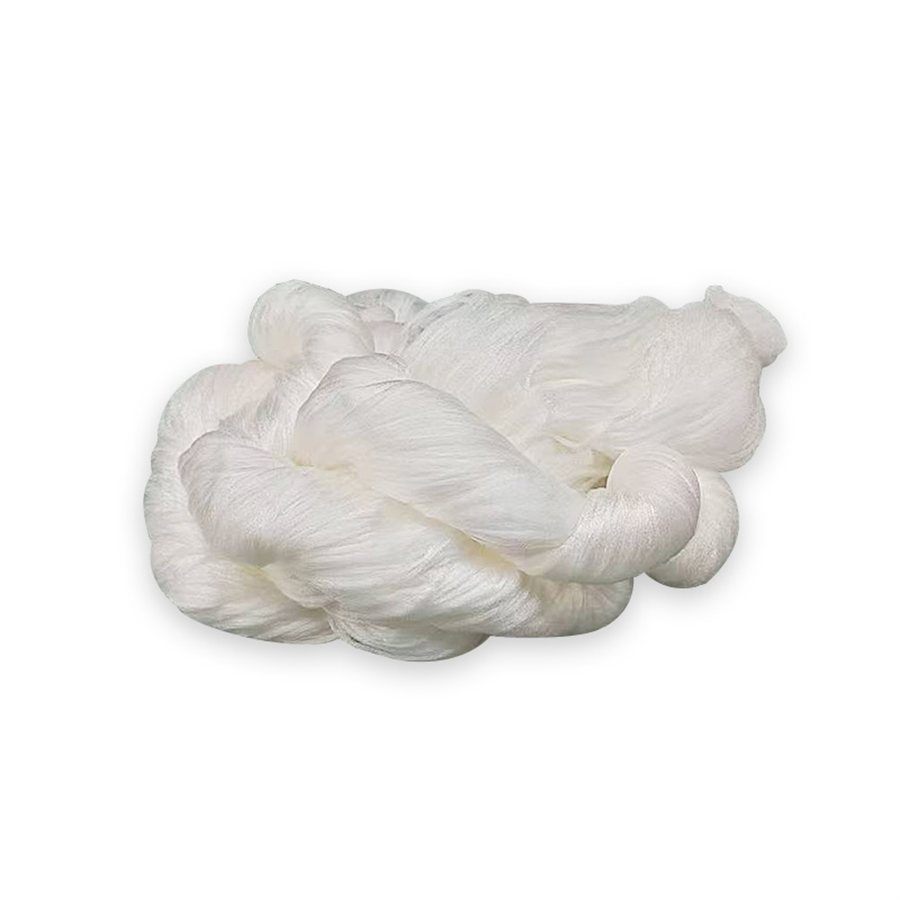

Fiber bundle filter media — bundle form on a white background

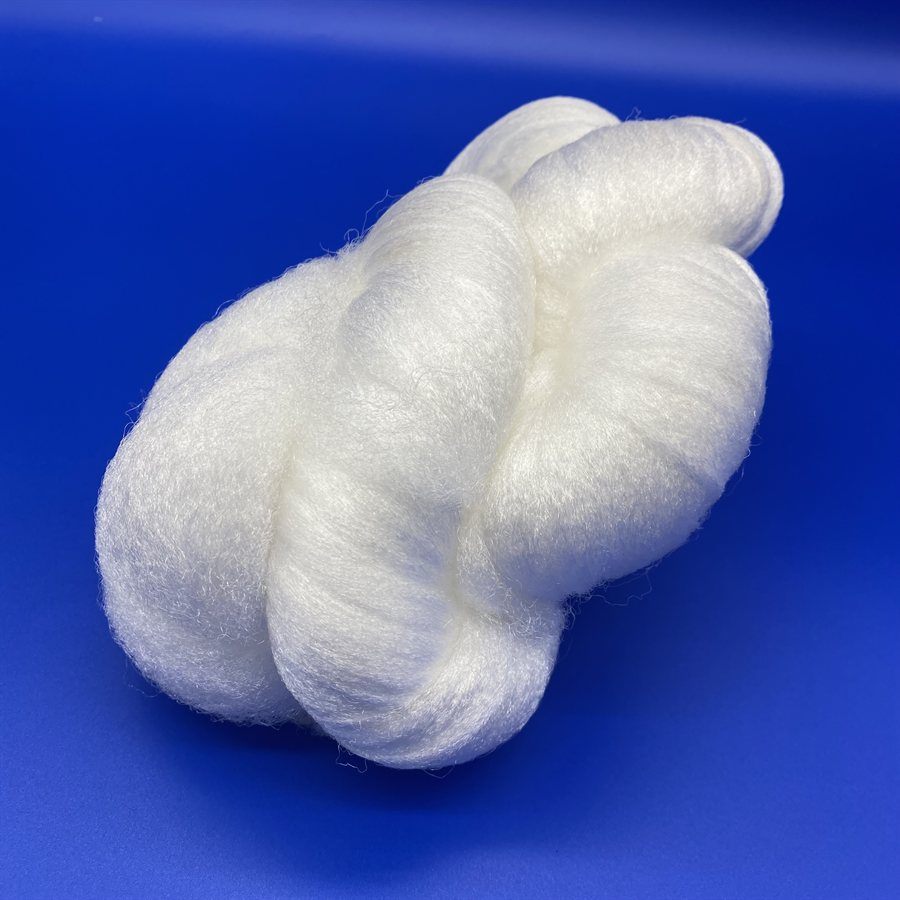

Fiber bundle filter media — bundle shown on a blue background

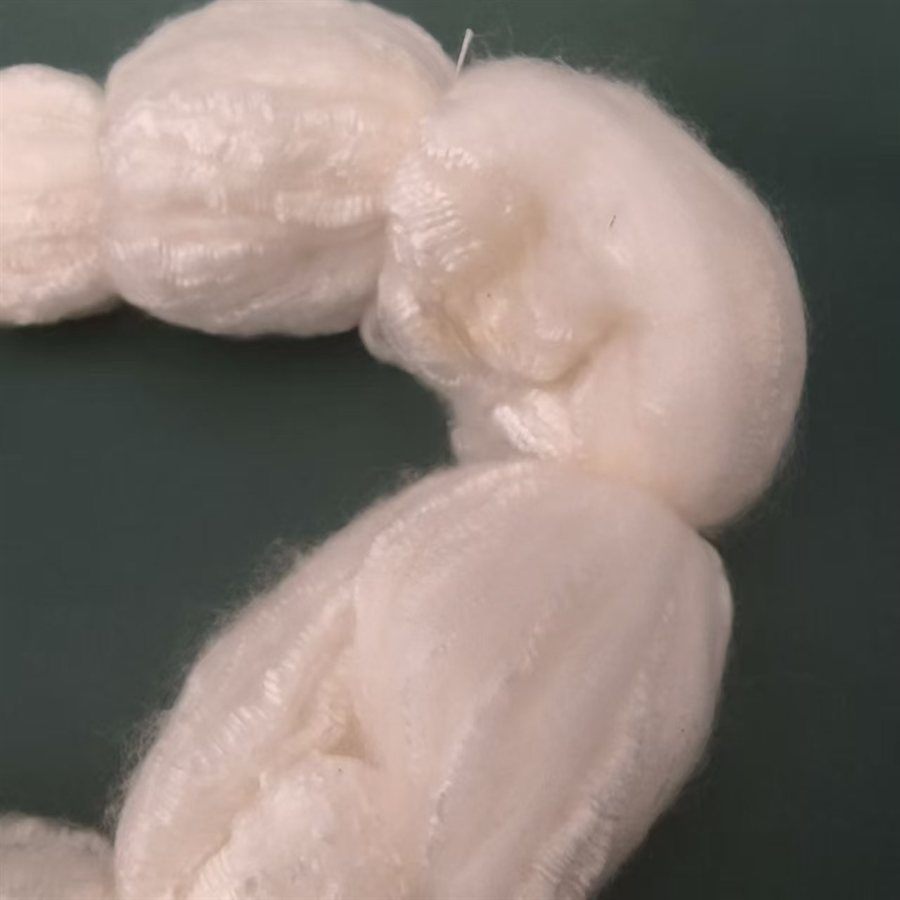

Fiber bundle filter media — fibre bundle product display

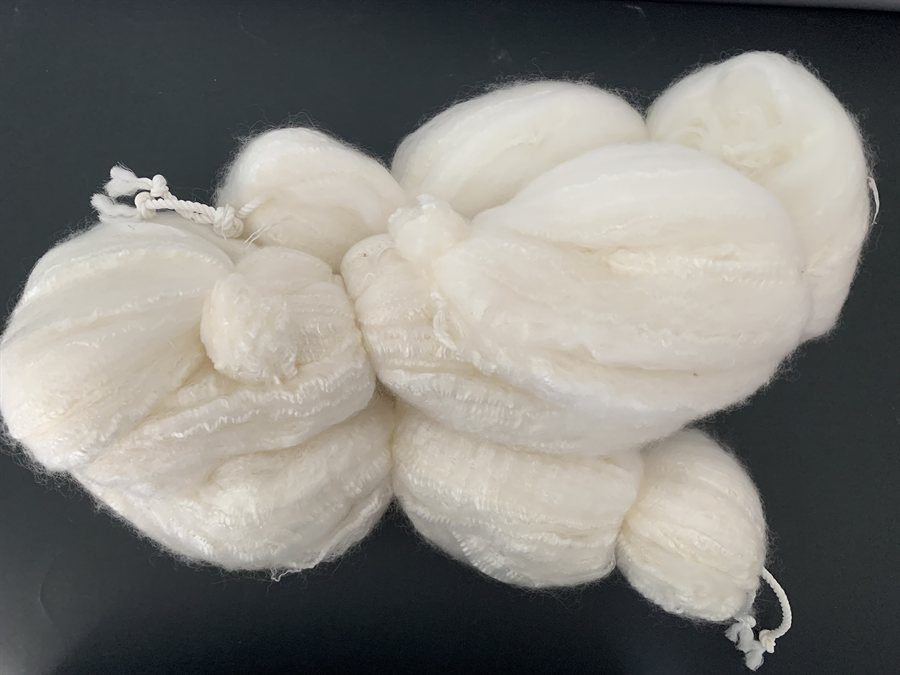

Fiber bundle filter media — fibre bundle on a dark background

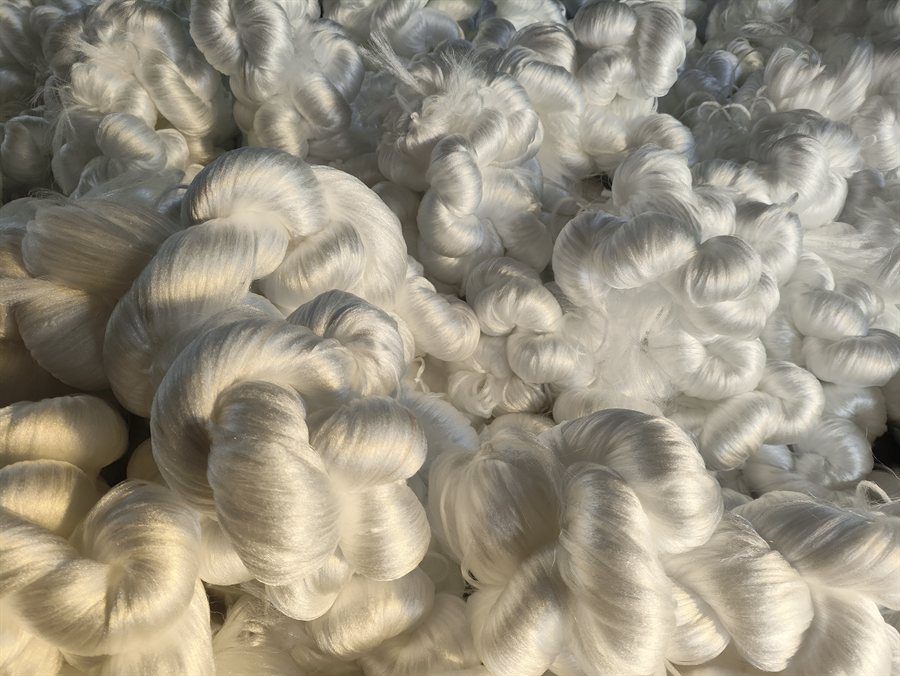

Fiber bundle filter media — bulk bundles in daylight

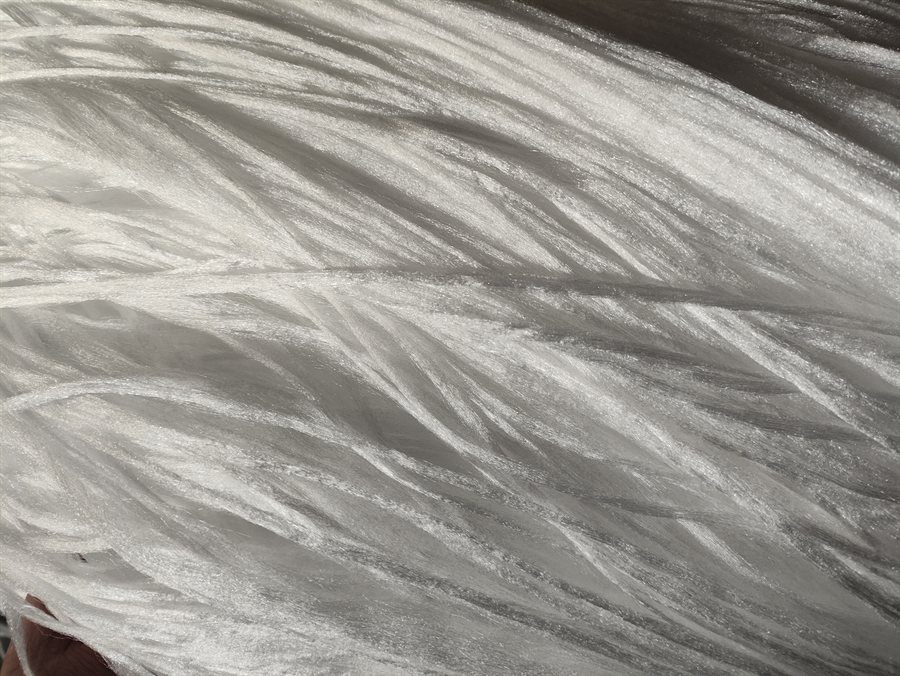

Fiber bundle filter media — filament detail

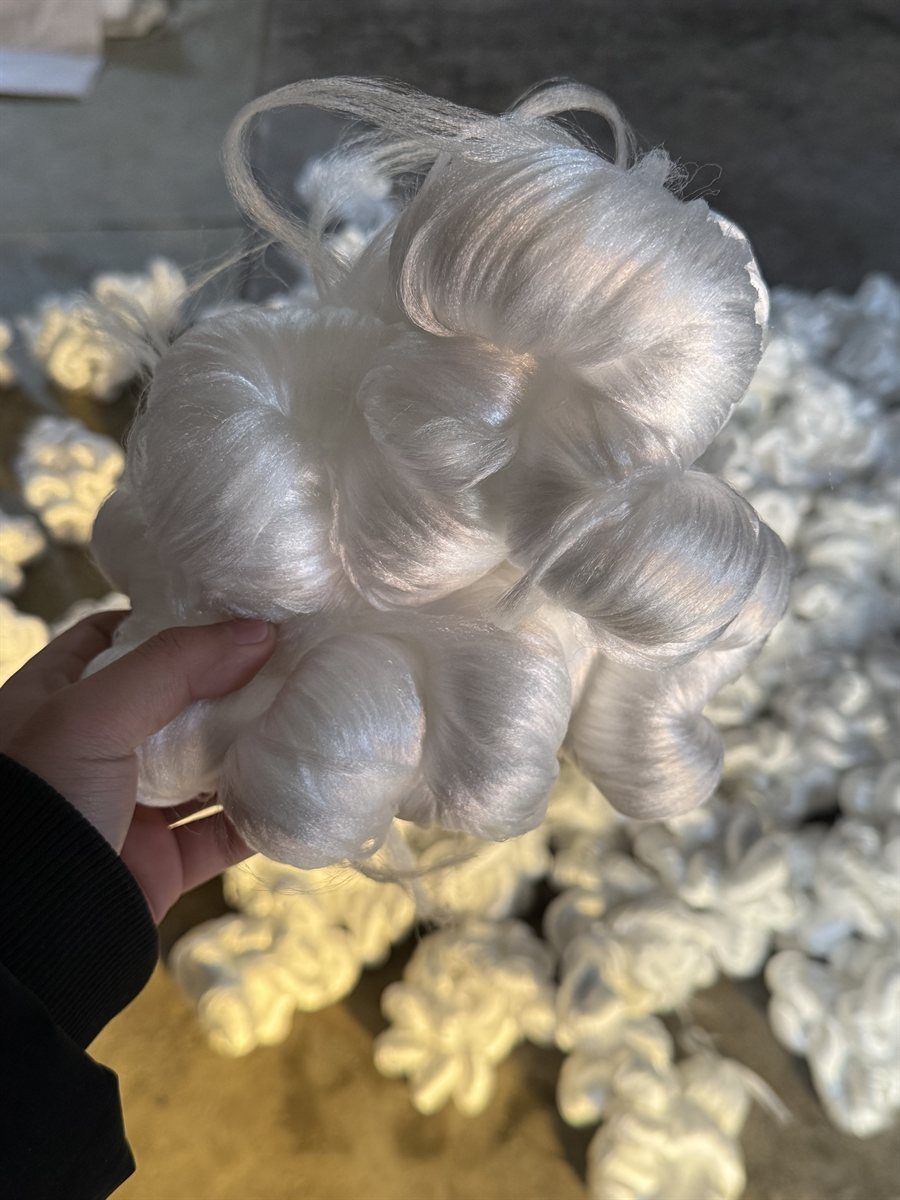

Fiber bundle filter media — bundle held in hand

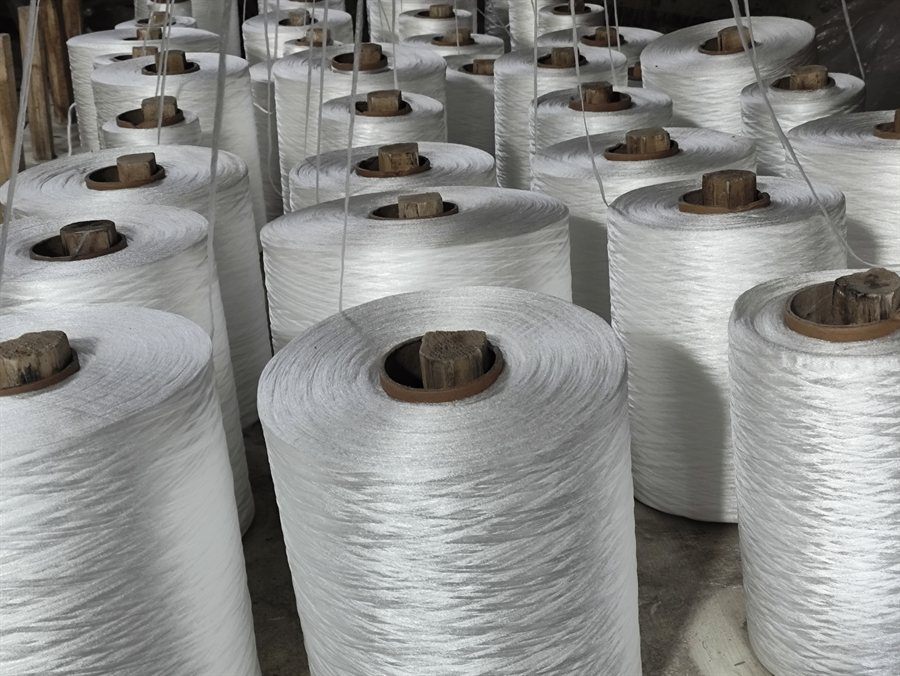

Fiber bundle filter media — bundle during production

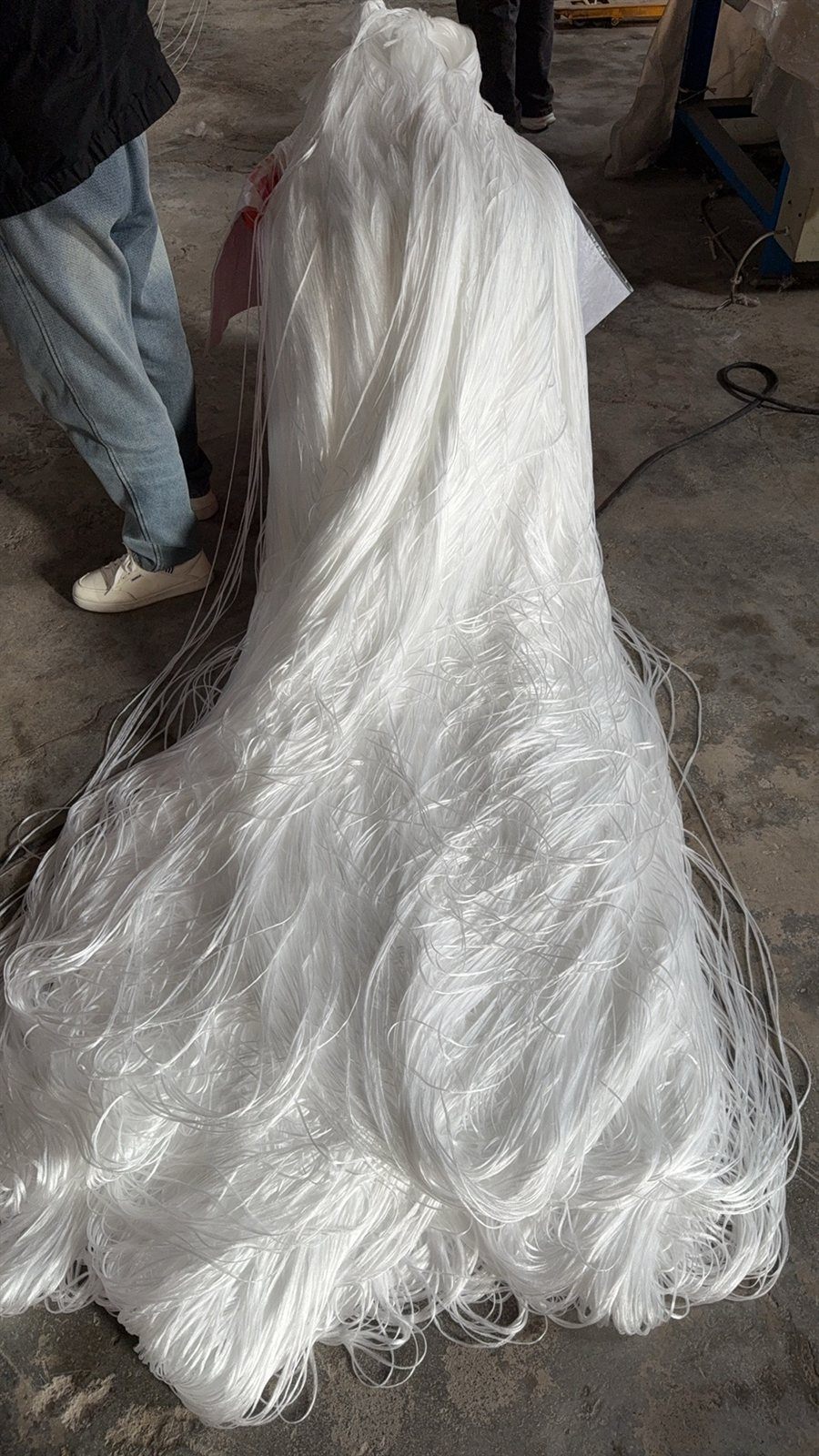

Fiber bundle filter media — production view

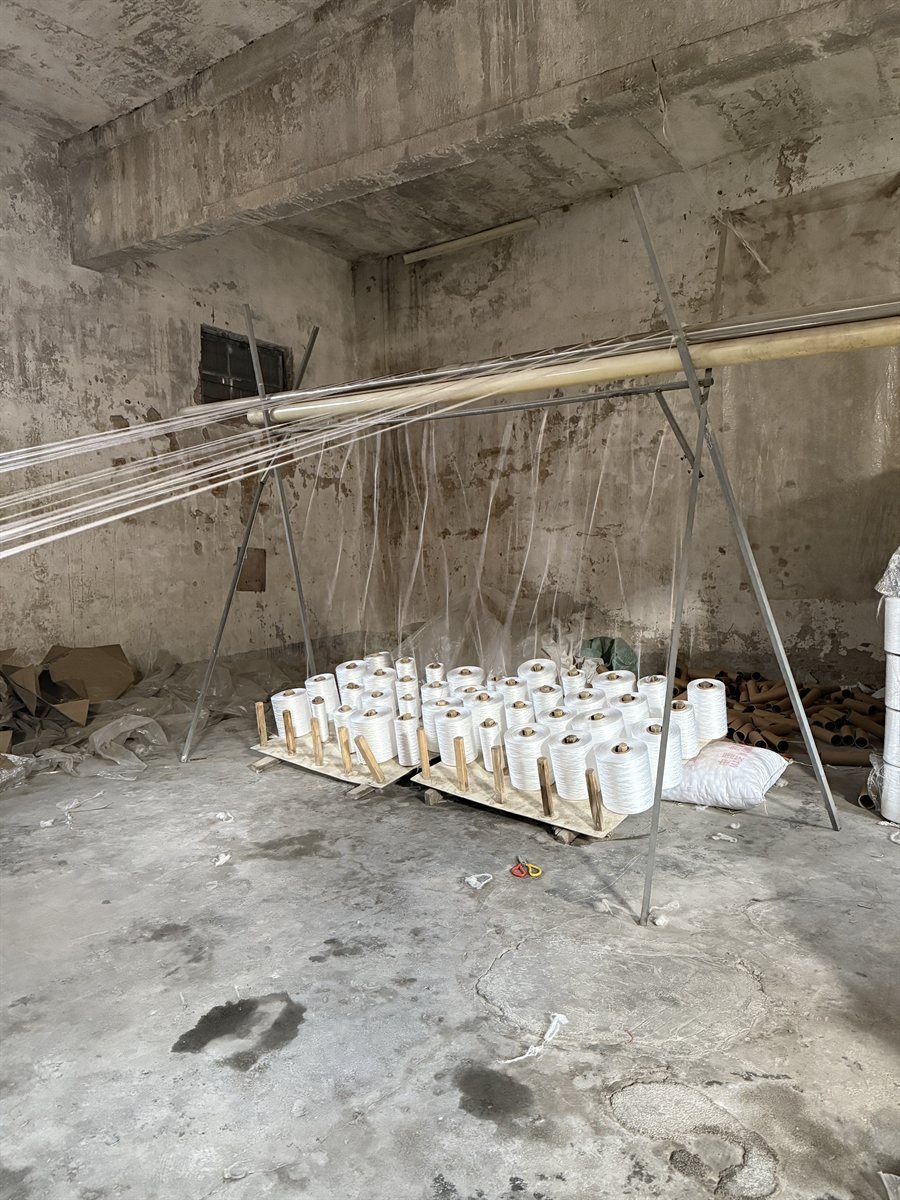

Fiber bundle filter media — stock in the factory

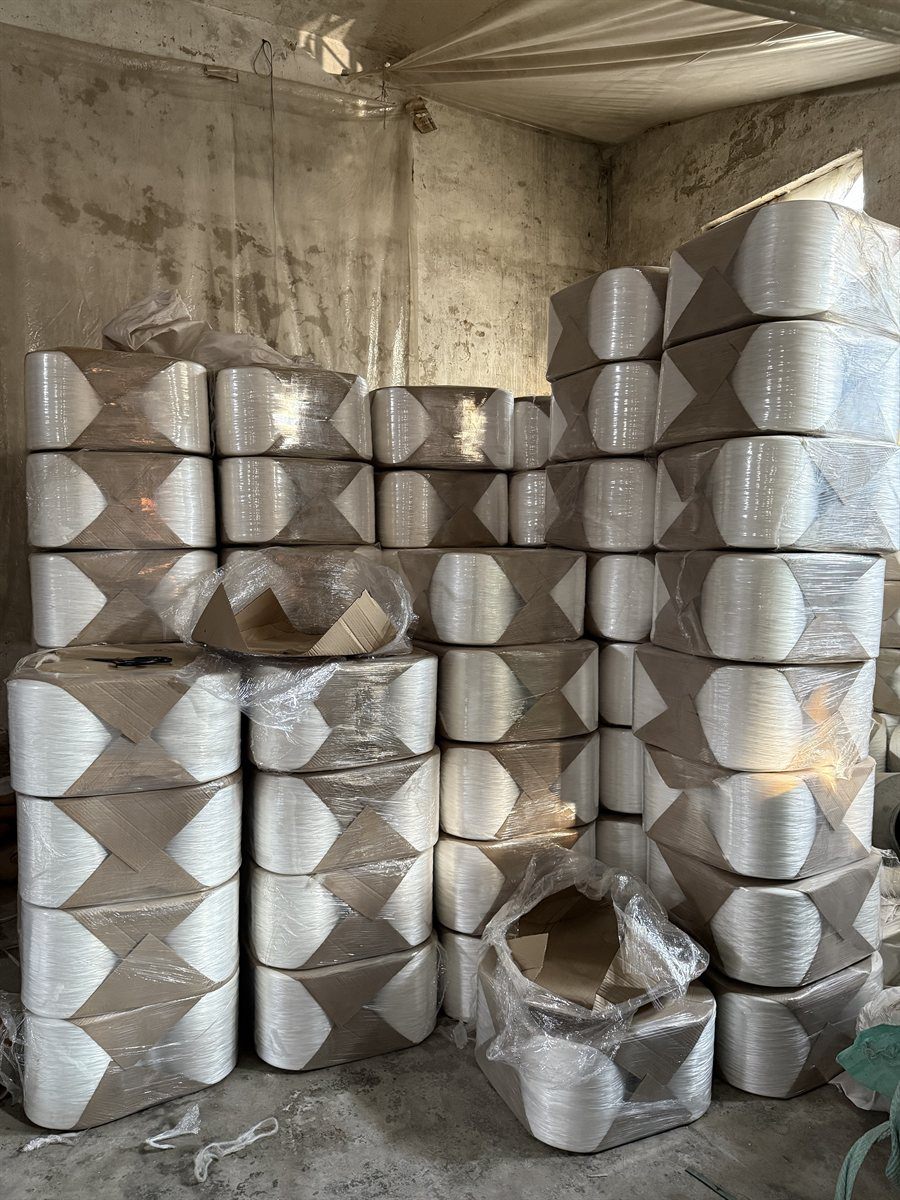

Fiber bundle filter media — bulk stock ready for shipment

Send your filter model and water quality

Give us the filter model, bed volume, filtration rate and target effluent quality — we will confirm the bundle dimensions, fibre grade, quantity and export packing.

Request a QuoteNo obligation · response within 24h (working days)
